WISCON CO.LTD

¤ Good capacitance stabilization, less than 1% of annual capacitance loss,
longer than 100,000 hours of service life,
¤ The Highly skill , distinctive design and excellence performance of
radiate heat the area of radiate heat is increased by 45% thantraditional's,
it's adapted for use in outdoor packaged substation with poor radiation
environment.
¤ Used in harmonic wave occasions ,it have the strong ability of
counterbalance,
¤ Low dielectric loss and perfect self-healing performance,
¤ Single unit with super capacity, effectively configuration cost saving,
simple and easy installation.

¤ Apply standard:GB/12747.2017, iec60831-1:2002
¤ Apply condition:Indoor,-25℃ ~50℃ ,humidity:<=80%RH,
¤ height<=2000MSL

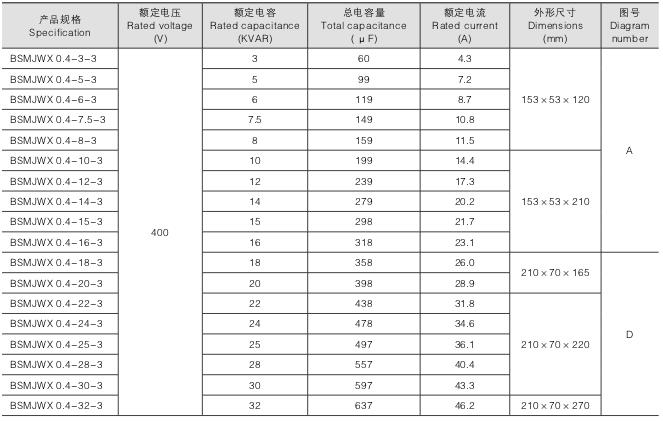

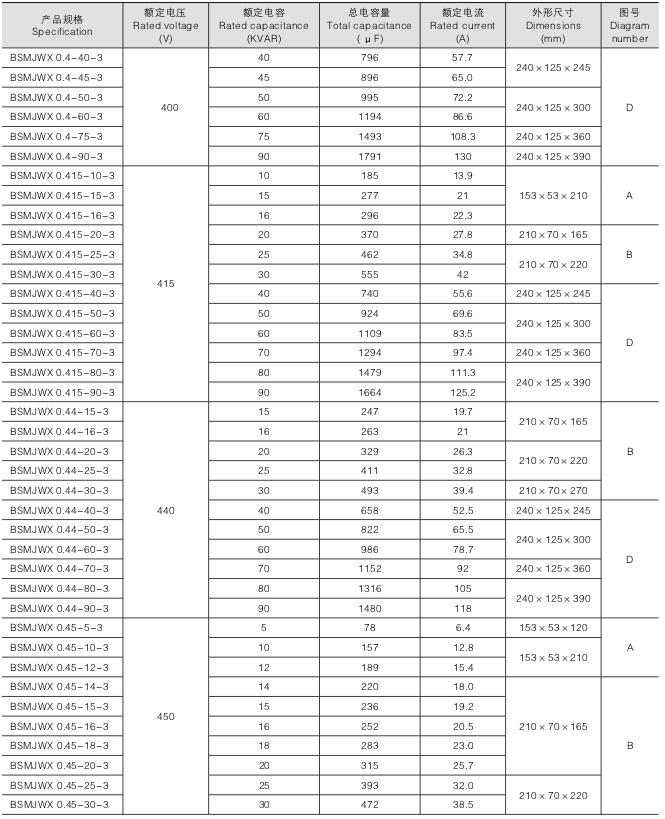

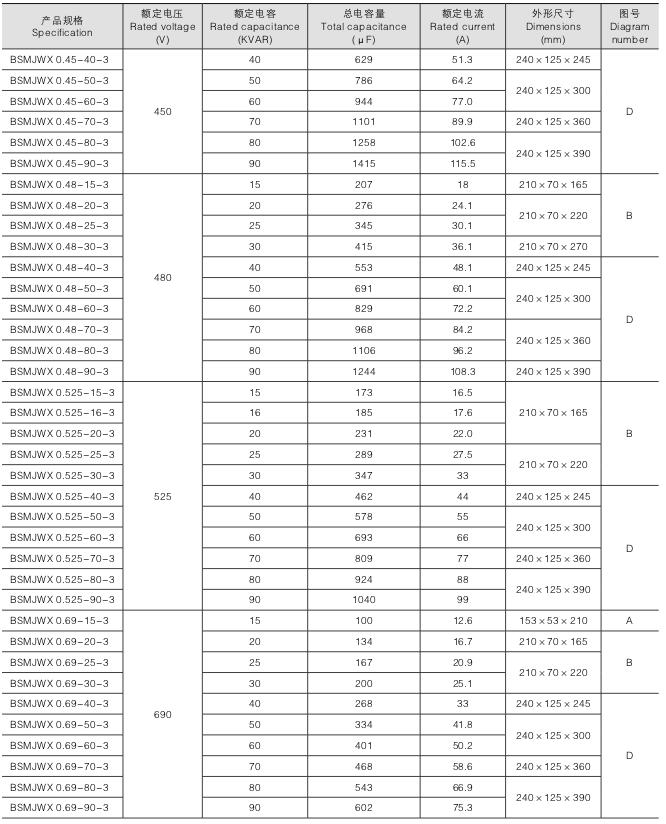

¤ Rated Voltage:0.23-1.2kv,AC
¤ Rated Output:1~90Kvar
¤ Capacitance Tolence:0~10%
¤ Voltage endurance:2.15Un in 2 seconds between T-T,3000VAC in 10 seconds between T-C.
¤ Tangent of loss angle:<0.1%(rated voltage at 20℃ ).
¤ Ceiling Voltage:1.1Un
¤ Ceiling Current:1.3Un
¤ Self-discharge feature: The terminal voltage will reduce below 50V in 3 minutes after disconnecting from power line.
